PERMAFINE

Art No. 11103
Dual Magnet Fine Pole Rectangular Permanent Magnetic Chuck
Download pdf
Application Images
Permafine 155x360

Features

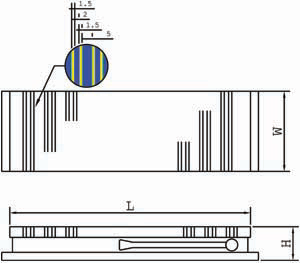

Line Diagram of Permafine
  • Steel and brass laminated top plate.
  • Poles are individually magnetized.
  • Double magnet system for maximum power.
  • Use of ferrite magnets ensures that the magnetic force will not reduce even on long use.
  • Low magnetic field: no magnetization of tools.
  • Smooth and simple actuating mechanism.
  • Rugged construction: exceptional longevity.
  • Handle pivots 180.

Applications

  • Ideal for tool room applications
  • Provides powerful holding for thin and thick work pieces.
  • Suitable for grinding, light to medium milling and shaping operations.
  • Adaptable to wide range of work pieces.
All Dimensions are in mm.
Art No.WLPole PitchH Select for
Quotation
11103.02 115 215 10 (5+1.5+2+1.5) 70
11103.01 115 180 10 (5+1.5+2+1.5) 70
11103.04 135 280 10 (5+1.5+2+1.5) 70
11103.02 135 260 10 (5+1.5+2+1.5) 70
11103.05 135 315 10 (5+1.5+2+1.5) 70
11103.07 155 315 10 (5+1.5+2+1.5) 73
11103.08 155 360 10 (5+1.5+2+1.5) 73
11103.09 155 415 10 (5+1.5+2+1.5) 73
11103.10 155 460 10 (5+1.5+2+1.5) 73
11103.11 155 500 10 (5+1.5+2+1.5) 73
11103.12 155 610 10 (5+1.5+2+1.5) 73
11103.06 155 280 10 (5+1.5+2+1.5) 73
11103.17 200 460 10 (5+1.5+2+1.5) 75
11103.13 200 280 10 (5+1.5+2+1.5) 75
11103.14 200 315 10 (5+1.5+2+1.5) 75
11103.16 200 415 10 (5+1.5+2+1.5) 75
11103.18 200 500 10 (5+1.5+2+1.5) 75
11103.19 200 610 10 (5+1.5+2+1.5) 75
11103.20 200 800 10 (5+1.5+2+1.5) 80
11103.21 200 1000 10 (5+1.5+2+1.5) 80
11103.15 200 360 10 (5+1.5+2+1.5) 75
11103.22 75 150 10 (5+1.5+2+1.5) 70
  • Larger size chucks are made with two operating handles.
  • Due to continuous upgradation in design there could be changes in specification.
  • Other sizes on request.
