PERMAMAX

Art No. 11202
Universal Pole Round Permanent Magnetic Chuck

PERMAMAX Dia 200

Features

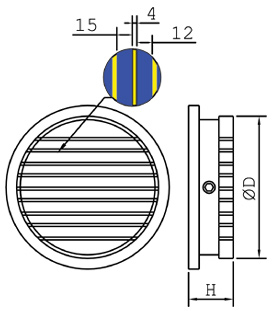

Line Diagram of PERMAMAX

Steel and brass laminated top plate.
Fully extended pole with minimum loss of working area.
These chucks are made with high power permanent magnets.
Detachable handle for easy use.

Applications

These are powerful and most suitable for medium and big components for grinding, light turning operations.

Back plate with tapped hole can be made on request.

All Dimensions are in mm.

Art No.	D	Pole Pitch	H	Select for Quotation
11202.01	100	31 (15+4+12)	70
11202.02	120	31 (15+4+12)	70
11202.03	150	31 (15+4+12)	70
11202.04	180	31 (15+4+12)	70
11202.05	200	31 (15+4+12)	70
11202.06	250	31 (15+4+12)	70
11202.07	300	31 (15+4+12)	73
11202.08	350	31 (15+4+12)	73
11202.09	400	31 (15+4+12)	73

Due to continuous upgradation in design there could be changes in specification.
Other sizes on request.
