EMICRO
Art No. 12105
Microfine Pole Rectangular Electro Magnetic Chuck
Download pdf
Application Images
EMICRO 200x450

Features

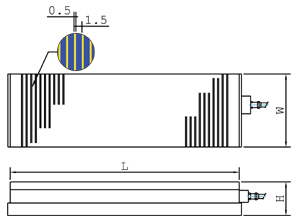

Line Diagram of EMICRO
  • Electro Magnetic Chuck having all metal brass and steel laminated top plate.
  • High resistance to coolant.
  • Electro Magnetic Chuck has high mechanical rigidity and proven robustness.
  • Electro Magnetic Chuck is guaranteed water proof.
  • Top plate is of Electro Magnetic Chuck machinable up to 8 mm.
  • Electro Magnetic Chuck can be easily fitted to the surface grinder.

Applications

  • Electro Magnetic Chuck is most ideal for thin components and for precision grinding.
  • The low magnetic flux of EMICRO does not interfere with the grinding operation there by giving higher accuracy.
  • The operating voltage is 110 VDC up to 12105.18, beyond that 220 VDC.
  • Electro Magnetic Chuck can be designed for other operating voltages.
All Dimensions are in mm.
Art No.WLPole PitchHControler Select for
Quotation
12105.31 150 350 2(1.5+0.5) 75 92101.01
12105.02 150 450 2(1.5+0.5) 75 92101.01
12105.29 150 250 2(1.5+0.5) 75 92101.01
12105.01 150 300 2(1.5+0.5) 75 92101.01
12105.32 150 400 2(1.5+0.5) 75 92101.01
12105.27 200 450 2(1.5+0.5) 75 92101.01
12105.26 200 400 2(1.5+0.5) 75 92101.01
12105.03 200 500 2(1.5+0.5) 75 92101.01
12105.04 200 600 2(1.5+0.5) 75 92101.01
12105.05 250 600 2(1.5+0.5) 75 92101.01
12105.08 250 1500 2(1.5+0.5) 75 92101.01
12105.06 250 750 2(1.5+0.5) 75 92101.01
12105.28 250 500 2(1.5+0.5) 75 92101.01
12105.07 250 1000 2(1.5+0.5) 75 92101.01
12105.11 300 900 2(1.5+0.5) 75 92101.01
12105.09 300 600 2(1.5+0.5) 75 92101.01
12105.25 300 1600 2(1.5+0.5) 78 92101.02
12105.10 300 750 2(1.5+0.5) 75 92101.01
12105.14 300 1500 2(1.5+0.5) 75 92101.02
12105.13 300 1200 2(1.5+0.5) 75 92101.02
12105.12 300 1000 2(1.5+0.5) 75 92101.01
12105.17 400 1000 2(1.5+0.5) 75 92101.02
12105.16 400 900 2(1.5+0.5) 75 92101.02
12105.18 400 1200 2(1.5+0.5) 75 92101.02
12105.15 400 600 2(1.5+0.5) 75 92101.02
12105.19 500 750 2(1.5+0.5) 78 92101.02
12105.20 500 1000 2(1.5+0.5) 78 92101.02
12105.21 500 1500 2(1.5+0.5) 78 92101.02
12105.22 500 2000 2(1.5+0.5) 78 92101.03
12105.30 500 800 2(1.5+0.5) 75 92101.01
12105.23 600 750 2(1.5+0.5) 78 92101.03
12105.24 600 1000 2(1.5+0.5) 78 92101.03
  • for Controller details, kindly visit the page Other Machines page.
  • Due to continuous upgradation in design there could be changes in specification.
  • Other sizes on request.
