RADIAL

Art No. 11206
Radial Pole Round Permanent Magnetic Chuck

RADIAL Pole Chuck - Dia 200

Features

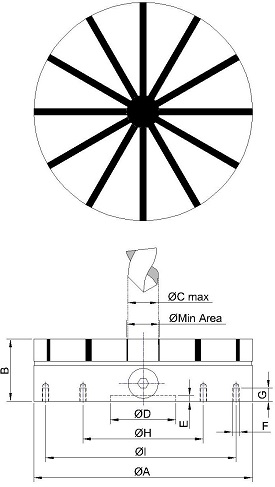

Line Diagram of Radial Pole Chuck

Homogeneous magnetic field through out the top plate.
The power is adjustable from 0% to 100% by positing the handle.
Top plate is machinable up to 5 mm.
Detachable handle for easy use.

Applications

Most ideal for disc, ring shaped components.
These are powerful and most suitable for all size components for grinding and light turning.
These can be offered with center through holes as an option for internal grinding and boring operation.

Can be made with slots to accommodate radially adjustable pole shoes.
Auxiliary top plates (adapter plates) available for fixturing.

All Dimensions are in mm.

Art No.	A	B	C (max)	D (H7)	E	F	G	Ø H	Ø I	Pole Min Area	No. of Poles	Self Weight	Select for Quotation
11206.02	130	57	20	50	5	M6	12		100	28	10	6
11206.03	160	57	24	50	5	M6	12	80	120	32	10	9
11206.04	200	57	30	60	5	M6	12	110	180	38	12	14
11206.06	250	70	42	80	5	M6	12	140	220	50	16	27
11206.07	300	73	42	150	6	M8	16	180	260	50	16	41
11206.08	350	73	56	170	6	M8	16	220	300	65	20	55
11206.09	400	75	56	200	8	M8	16	260	340	65	20	75
11206.11	500	81	75	200	8	M8	16	300	400	85	24	118
11206.12	600	95	100	250	8	M10	20	350	450	120	30	170

Due to continuous upgradation in design there could be changes in specification.
Other sizes on request.
