MAGNETIC STICKS

Art No. 31203
Download pdf

Features

  • Made from powerful NdFeB magnets.
  • Magnets on both sides.
  • Can be made with flexible shaft.

Applications

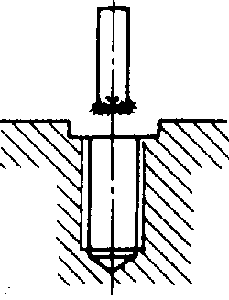

  • Most suitable for removing iron chips from deep blind holes after drilling and before tapping.
  • Can be used for cleaning iron particles from tanks.
  • Can pick up ferrous particles from not easily accessible areas.
All Dimensions are in mm.
Art No.For Tapped HoleLMagnetic Power
(Kg)
Select for
Quotation
31203.01 M3 - M5 150 0.1
31203.02 M8 - M12 200 0.5
31203.03 M16 - M20 250 2.0
31203.04 M25 - M36 300 8.0
  • Due to continuous upgradation in design there could be changes in specification.
  • Other sizes on request.
